Drifter X
Fast Everywhere
Aggressive handling and high stiffness under power make the Drifter X fast on any surface.
Sometimes less is more.
By shedding some of the Swiss-Army-Knife versatility of our popular Drifter model, the Drifter X gains sharpness and focus for aggressive rides. With quick handling built around up to 700x45mm tires, a short wheelbase, and high levels of drivetrain stiffness the Drifter X is ready for gravel races or fast riding on mixed surfaces.

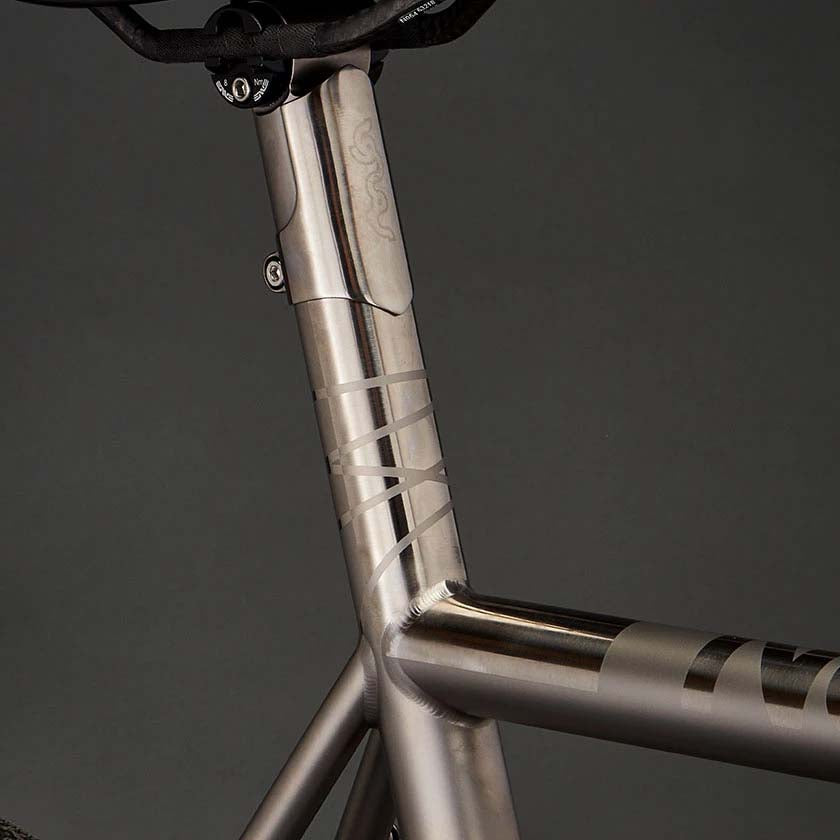

Compared to our Drifter model, the Drifter X features shorter chainstays and reduced stack for more aggressive handling, as well as construction upgrades such as a tapered head tube with internal headset and titanium seat mast together with our bespoke cast titanium mast topper.
"One of the most impressive bikes I've ever seen."
"In my many years of attending and judging the awards at NAHBS, it was one of the most impressive bikes I’ve ever seen, and that’s no small feat when displayed in a room full of everyone’s best work." -
Patrick Brady on No. 22's Best-in-Show win at NAHBS 2019
Optional finishes
Make your No. 22 truly yours. In addition to our standard raw finish, every No. 22 is available in ten optional anodized finishes. Our unique anodizing process gives us the widest range of anodized titanium colours available.
Feature Rich
The Drifter X includes as standard what most builders charge extra for. Every Drifter X includes:
- - Fully butted tubeset, butted in-house by CNC

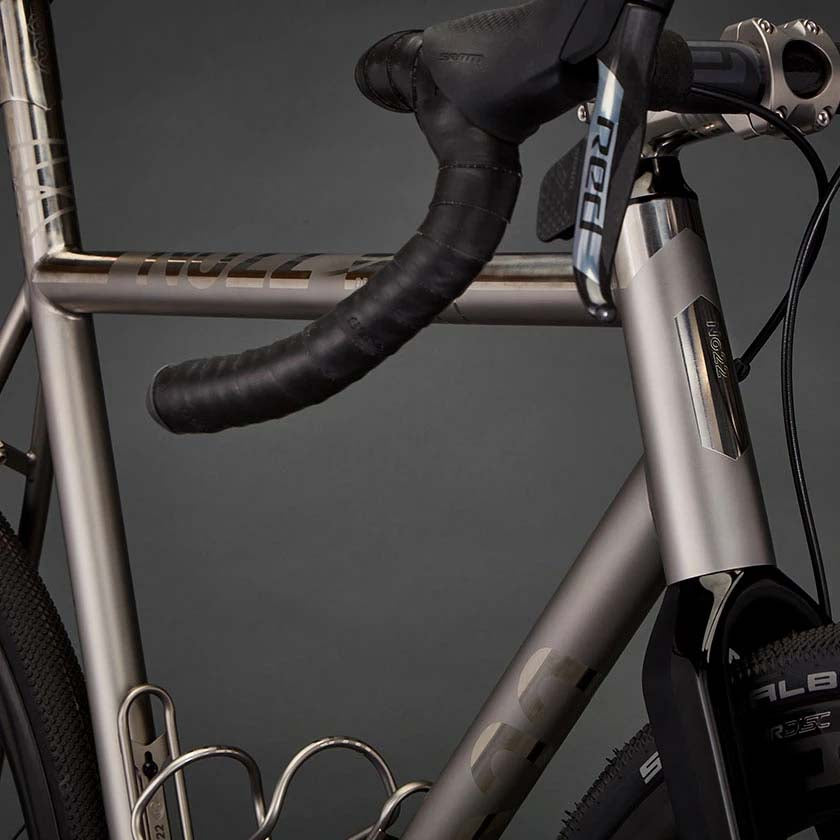

- - Tapered head tube for 1-1/4" tapered carbon forks
- - Brushed and blasted frame graphics, with no decals or stickers
- - Ten year warranty against manufacturing defects
- - T47 threaded oversized bottom bracket shell
- - Full carbon No. 22 fork designed specifically for our frames
- - Clearance for up to a 45mm measured tire width
- - Standard fender mounts
- - Thru axles front and rear
Details Matter
Complete your Drifter X build with a range of thoughtful finishing details, including:
- - Titanium bottle cages finished to match
- - No. 22 aluminum stem, custom painted to match the fork
- - Third water bottle bosses or rack mounts
Geometry Chart
| Size | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Effective top tube length (mm) | 502 | 511 | 525 | 545 | 560 | 575 | 595 |
| Seat tube, center-center (mm) | 460 | 478 | 502 | 520 | 535 | 552 | 576 |
| Head tube length (mm) | 110 | 120 | 135 | 155 | 170 | 190 | 210 |
| Seat tube angle (deg) | 74.5 | 74 | 74 | 73.5 | 73 | 73 | 72.5 |
| Head tube angle (deg) | 70.5 | 70.5 | 70.8 | 71 | 71.2 | 71.2 | 71.5 |
| Front center (mm) | 571 | 576 | 589 | 603 | 612 | 627 | 640 |
| Chain stay length (mm) | 427 | 427 | 427 | 427 | 430 | 432 | 432 |
| BB drop (mm) | 73 | 73 | 73 | 72 | 70 | 70 | 70 |
| Reach (mm) | 355 | 356 | 363 | 376 | 382 | 392 | 400 |
| Stack (mm) | 521 | 530 | 546 | 564 | 577 | 596 | 616 |
| Standover (700x38mm tires) | 758 | 772 | 790 | 809 | 824 | 842 | 863 |
